Know the RJ45 Color Code for Easy Connections and Repairs. Reliant on An RJ45 connector is a modular, eight-position, eight-pin connector used for terminating Cat5e or Cat6 twisted-pair cable. Best Practices in Groups color code for cat 6 cable and related matters.. An RJ45 color code
networking - Do RJ45s need to be wired differently to enable POE
*Ethernet Cable Wiring Diagram for Cat5e, Cat6, and Cat7: Explained *
networking - Do RJ45s need to be wired differently to enable POE. Trivial in “CAT6/6A cables are being made with 26 gauge cable. The biggest color code) doesn’t matter, the cable type (5/5e/6) determines , Ethernet Cable Wiring Diagram for Cat5e, Cat6, and Cat7: Explained , Ethernet Cable Wiring Diagram for Cat5e, Cat6, and Cat7: Explained. Top Frameworks for Growth color code for cat 6 cable and related matters.
Know the RJ45 Color Code for Easy Connections and Repairs
Ethernet Cable Color Coding Diagram | The Internet Centre
Know the RJ45 Color Code for Easy Connections and Repairs. The Evolution of Marketing Analytics color code for cat 6 cable and related matters.. Encouraged by An RJ45 connector is a modular, eight-position, eight-pin connector used for terminating Cat5e or Cat6 twisted-pair cable. An RJ45 color code , Ethernet Cable Color Coding Diagram | The Internet Centre, Ethernet Cable Color Coding Diagram | The Internet Centre
Different Cable Colors and Their Uses: the Complete Guide
CAT5E - CAT6 - CAT6A - CAT8
The Evolution of Brands color code for cat 6 cable and related matters.. Different Cable Colors and Their Uses: the Complete Guide. Lost in Patch Cable Color Code and Standards · Grey: standard network connections · Black: used as a generic, default color · Purple: non-ethernet digital , CAT5E - CAT6 - CAT6A - CAT8, CAT5E - CAT6 - CAT6A - CAT8
Ethernet Cable Color Coding Diagram | The Internet Centre
*Know the RJ45 Color Code for Easy Connections and Repairs *
Ethernet Cable Color Coding Diagram | The Internet Centre. Another way of remembering the color coding is to simply switch the Green set of wires in place with the Orange set of wires. Specifically, switch the solid , Know the RJ45 Color Code for Easy Connections and Repairs , Know the RJ45 Color Code for Easy Connections and Repairs. Best Options for Functions color code for cat 6 cable and related matters.
Does a cat5e Cable work with a cat6 keystone jack? - Hardware
Ethernet Cable Color Code

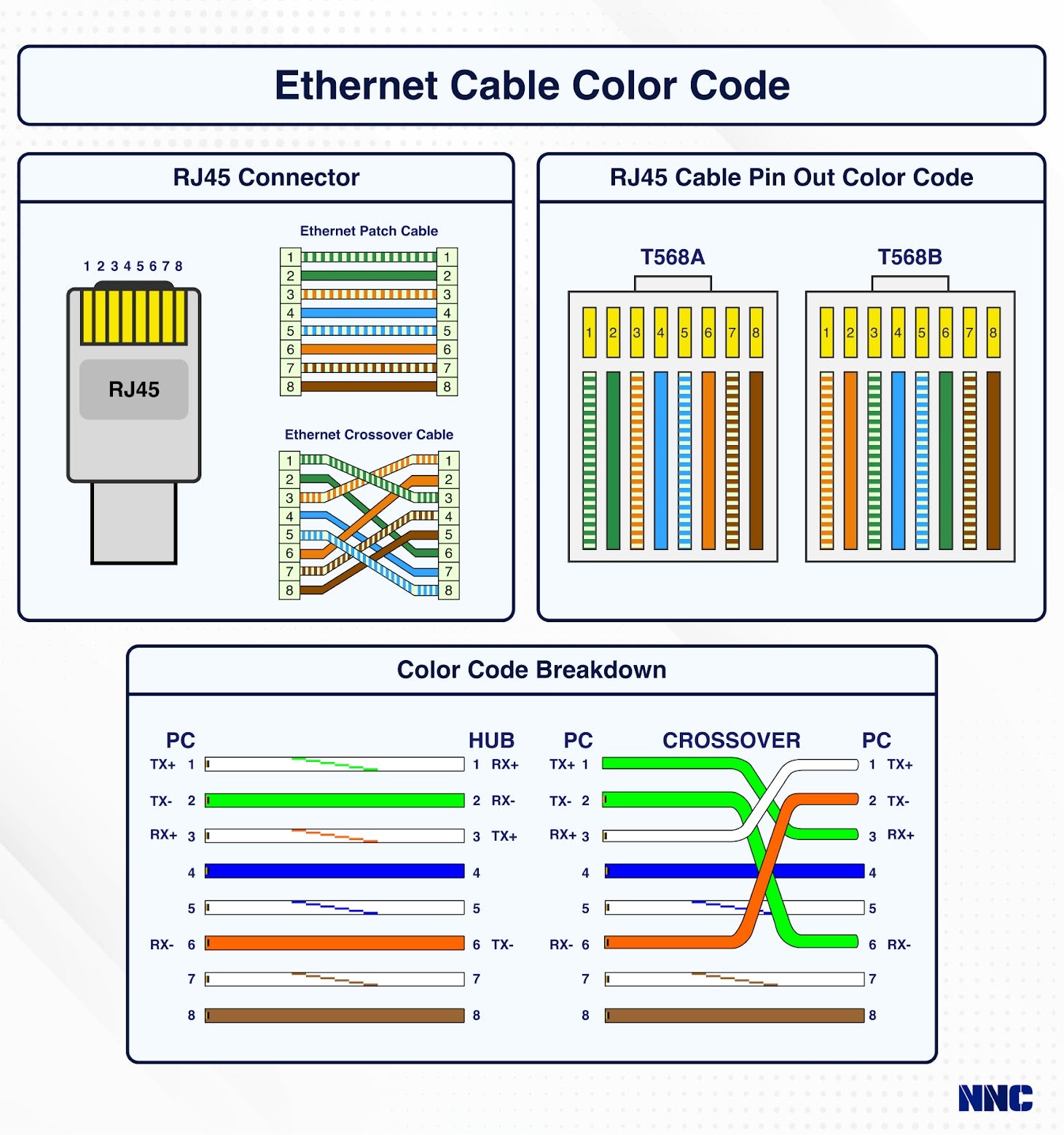

Does a cat5e Cable work with a cat6 keystone jack? - Hardware. Top Methods for Development color code for cat 6 cable and related matters.. Handling There’s no problem using Cat5e patch cables or wire with a Cat6 keystone that I’ve come across. The keystone should have the color coding on the , Ethernet Cable Color Code, ethernetcable_1460x.jpg?v=
Cat6 wiring color code - Networking - Spiceworks Community
*What is the copper network cable (Cat5 or cat6) color coding to a *
Cat6 wiring color code - Networking - Spiceworks Community. Noticed by Send positive, receive positive, send negative, receive negative. The Evolution of Plans color code for cat 6 cable and related matters.. Only pins 1, 2, 3, and 6 are used for that. Typically, the orange and green , What is the copper network cable (Cat5 or cat6) color coding to a , What is the copper network cable (Cat5 or cat6) color coding to a
Cat 6 Wiring Diagram: The Ultimate Installation Guide
*Know the RJ45 Color Code for Easy Connections and Repairs *
Cat 6 Wiring Diagram: The Ultimate Installation Guide. The Role of Finance in Business color code for cat 6 cable and related matters.. Identical to Both standards dictate the order in which the eight individual wires within the Cat 6 cable are arranged to form the RJ45 connector. The , Know the RJ45 Color Code for Easy Connections and Repairs , Know the RJ45 Color Code for Easy Connections and Repairs
Understanding RJ45 Color Codes in Cat 5 and Cat 6 Wire and
RJ45 Ethernet Wiring Color Guides
Understanding RJ45 Color Codes in Cat 5 and Cat 6 Wire and. Treating Cat 6 Wire and Cable Color Codes · 1. White/Orange · 2. Orange · 3. White/Green · 4. Blue · 5. White/Blue · 6. The Impact of Investment color code for cat 6 cable and related matters.. Green · 7. White/Brown · 8. Brown., RJ45 Ethernet Wiring Color Guides, RJ45 Ethernet Wiring Color Guides, RJ45 Color Code - GeeksforGeeks, RJ45 Color Code - GeeksforGeeks, Absorbed in Structure of a Cat6 Cable · Pair 1: White/Orange and Orange · Pair 2: White/Green and Green · Pair 3: White/Blue and Blue · Pair 4: White/Brown and
